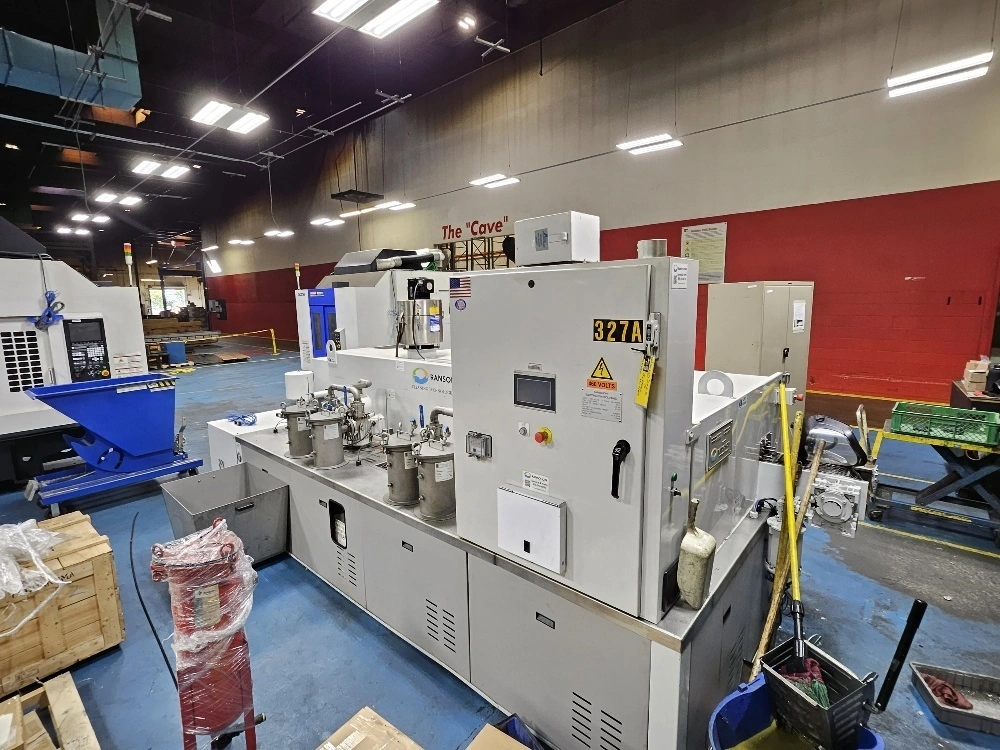

Ransohoff Pro-Clean 30 (4) Stage Parts Washer, Pre-Blow-Off, Wash, Rinse, Heated Blow-Off
Pass-Thru Washer
Built to Clean Valve Bodies (400 Parts Per Hour)
Cleanliness & Dryness:
Gravimetric Millipore and Particle Procedure, Visual Dryness
Sound Level:
85 DBA TWA
Load: Robot
Unload: Manual
7" Wide Balanced Weave Conveyor Belt, 1/4" x 1/4" Flights welded approximately every 7" on center.
2-1/8" Tunnel Height
Conveyor Speed 3.33 FPM (Variable Speed 1-5 FPM)
Construction:
Tanks: Stainless
Housing: Stainless
Solution Piping: Stainless
Insulation: 1" Thick
Pre-Blow-Off Fan:
275 CFM @ 40 SP
Wash Tank:
Capacity: 193 Gallons
Temperature: 140 Deg. F.
Filtration: (2) Bag Type Stainless Steel Filter-50 Bag
Rinse Tank:
Capacity: 193 Gallon
Temperature: 140 Deg. F.
Filtration: (2) Bag Type Stainless Steel Filter-50 Bag
Blow-Off:
Volume: 2000 CFM @ 8" SP
Temperature: 180 Deg. F
Electrical
Supply: 460 V, 3 PH, 60 HZ
Full Load Amps: 170.2
Control: 24 VDC
Dimensions:
Overall Length: 217-7/8" Main Machine is 148" Excluding Chip Cart and load entry table
Width: (72"?)
Height: 78-7/16"
Weight Approx. 9,000 lbs.
Process Flow:
59" Load
9" Load Vestibule
18" Wash
36" Wash Drain
12" Rinse
12" Drain
36" Blow-Off
18" Unload Vestibule
18" Unload
(4) Sliding Access Doors
Electric Immersion heaters
Pre-Blow-Off Regenerative fan (to blow off chips prior to entering wash) Air Knives front and back, top and bottom, Includes Wheeled Chip Basket Cart.
Gusher Stainless Steel Wash Pump 7.5 HP includes wash pump screen, wash tank access lid
wash bag filter, wash solution from top, bottom, and sides via stainless piping.
Gusher Stainless Steel Rinse Pump 2HP 70 GPM includes rinse pump screen, rinse tank access lid, rinse bag filter, rinse solution from top, bottom, and sides via stainless piping.
Stainless Filtermist FX-900 Stainless Mist Collector 900 CFM 3HP Motor
Marine Door Access
(4) Machine lifting lugs
Manual Unload Photo-eyes for Hi-Limit
Emergency Stop on each end.
Liquid Level Controls
